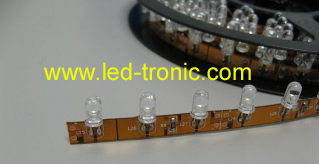

LED ribbon / Flexible Strip with Through-hole LED
Optical and Electrical Characteristics
Each meter of stripe has 60pcs or 96pcs of Through-hole LED, arranged in a single line. The available colours are: Red, Green, Blue, White and Yellow. The optical and electrical characteristics for each colour are given in the following table:
a) 60 SMD LED series per meter (BL-LRDPC30 version):
Number of LEDs / meter |
Order Code |
Colour |
Wavelength |
Viewing Angle |
Luminous
Intensity (lm) |
Supply Voltage |
Working Current (mA) |
60 red LEDs |
BL-LRDPR30 |
Red |
625nm |
20¡ã / 120¡ã |
|
12V DC |
|
60 green LEDs |
BL-LRDPG30 |
Green |
515nm |
20¡ã / 120¡ã |
|
12V DC |
|
60 blue LEDs |
BL-LRDPB30 |
Blue |
473nm |
20¡ã / 120¡ã |
|
12V DC |
|
60 white LEDs |
BL-LRDPW30 |
Cold White |
6500K |
20¡ã / 120¡ã |
|
12V DC |
|
60 white LEDs |
BL-LRDPW30-WW |
Warm White |
3200K |
20¡ã / 120¡ã |
|
12V DC |
|
60 yellow LEDs |
BL-LRDPY30 |
Yellow |
590nm |
20¡ã / 120¡ã |
|
12V DC |
|
b) 96 SMD LED series per meter (BL-LRDPC48 version):
Number of LEDs / meter |
Order Code |
Colour |
Wavelength |
Viewing Angle |
Luminous
Intensity (lm) |
Supply Voltage |
Working Current (mA) |
96 red LEDs |
BL-LRDPR48 |
Red |
625nm |
20¡ã / 120¡ã |
|
12V DC |
|
96 green LEDs |
BL-LRDPG48 |
Green |
515nm |
20¡ã / 120¡ã |
|
12V DC |
|
96 blue LEDs |
BL-LRDPB48 |
Blue |
473nm |
20¡ã / 120¡ã |
|
12V DC |
|
96 white LEDs |
BL-LRDPW48 |
Cold White |
6500K |
20¡ã / 120¡ã |
|
12V DC |
|
96 white LEDs |
BL-LRDPW48-WW |
Warm White |
3200K |
20¡ã / 120¡ã |
|
12V DC |
|
96 yellow LEDs |
BL-LRDPY48 |
Yellow |
590nm |
20¡ã / 120¡ã |
|
12V DC |
|
|
