RGB
Controller with Remote-control
Item #: BL-LC005
Summarization:
RFcontroller adopts the advanced micro-control unit, it¨s used for controlling a variety of lamps whose source of light is LED. For instance, points source of light, flexible chatoyancy, wall washer lamp, glass curtain wall light and so on;? it has many advantages such as easy connection and simplicity to use. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and the other effect changing.
Specifications:
Working temperature: -20-60 ≧
Supply voltage: DC5V, DC12V, DC18V, DC24V optional
Product size: L95〜W65〜H25 mm
Net weight: 250g
Output: Three CMOS drain- open output
Connecting Mode: Common anode
Rated load current: 4 A each channel
Output power: 5V＋60W; 12V＋144W; 24V ＋288W
Operation instructions:
There are six keys on the remote controller panel, the function of each key as follows:
ON/OFF: you could turn on/off controller at any time;
MODE: the color change button, there are 21 modes of change for you to choose;
B+: A brightness control button, the step of the brightness add 1 by each pressing, a total of 256 steps;
B-: The step of the brightness subtract 1 by each pressing;
S+: The step of the speed change add 1 by each pressing, a total of 100 steps.
S-: The step of the speed change subtract 1 by each pressing.
Standard changes function as the following form:
No |
Patterns |
Remarks |
No |
Patterns |
Remarks |
1 |
Static red |
|
12 |
Red stroboflash |
Speed and Brightness are adjustable |
2 |
Static blue |
|
13 |
Blue stroboflash |
3 |
Static purple |
Brightness is |
14 |
Purple stroboflash |
4 |
Static green |
adjustable, Speed is |
15 |
Green stroboflash |
5 |
Static yellow |
Un-adjustable. |
16 |
Yellow stroboflash |
6 |
Static cyan |
|
17 |
Cycan stroboflash |
7 |
Static white |
|
18 |
White stroboflash |
8 |
Three-color jumpy changing |
Speed and brightness are |
19 |
R/B crossfade |
Speed is adjustable, brightness is un-adjustable |
9 |
Seven-color jumpy changing |
adjustable |
20 |
B/G crossfade |
10 |
Three-color gradual changing |
Speed is adjustable, brightness |
21 |
G/R crossfade |
11 |
Seven-color gradual changing |
is un-adjustable |
|
|
|

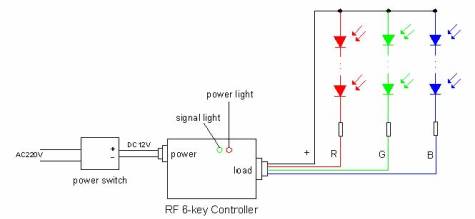

Typical Application:
 |
