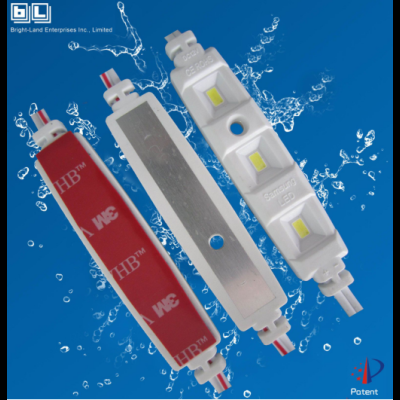

| Home / 5630 LED Module / Waterproof Samsung 5630 LED Module 3-LED |
| |
Ref.: BL-LMN5630W03-AL
Desc.: Samsung LED Module with aluminum PCB + screw hole + ABS casing + 3M adhesive tape |
| |
Product Details: |
 |
|
| Power (W) |
1.2W |
| LED Quantity |
3LEDs |
| Dimension (mm) |
63.5X16X4.6mm |
| IP rating |
IP65 |
| Color Temperature (K) |
2700K / 3000K / 4000K / 5000K / 6500K |
| Lumens output (LM) |
108-115LM |
| Luminous efficacy (LM/W) |
>90LM/W |
| Angle (°) |
120° |
| Type of LED |
SAMSUNG 5630 PLUS LED |
| CRI |
>80 |
| PCB |
Aluminum |
| Casing |
ABS |
| Voltage (V) |
DC 12V |
| Life span (hours) |
50000 |
| Working temperature (°C) |
-40°C - 50°C |
| Warranty |
5 years |
|
LED powered by  |
|
| |
|
|
| |
|
Specification  |
